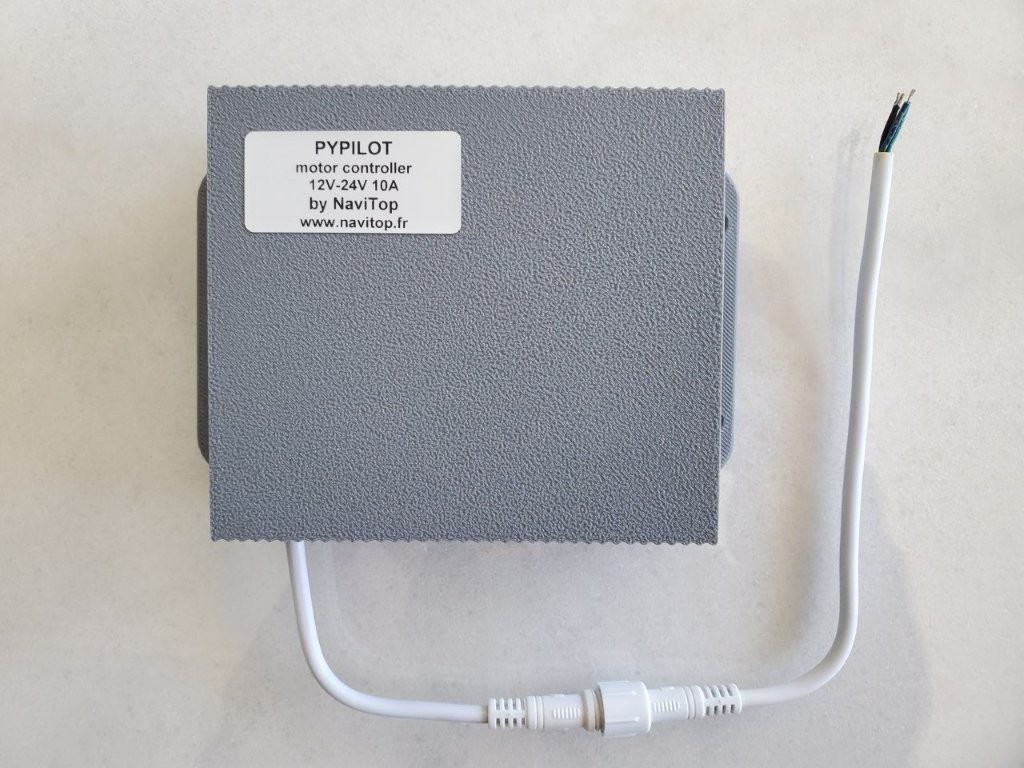

This motor controller with enclosure is sized to supply 10A continuously in 12 or 24V. It features EMC filters added to the Navitop 15A controller, using the same printed circuit board.

The clutch control components are not installed, and the transistors are rated at 100A instead of 200A with the 12-24V 15A supply.It can safely power the Pypilot computer with 5V DC.

10A is the motor current to be considered at maximum torque allowing the rudder to move freely. This is not the current with the motor locked because this controller allows the current to be electronically limited when the rudder is locked. The peak current of this controller can be 15A.

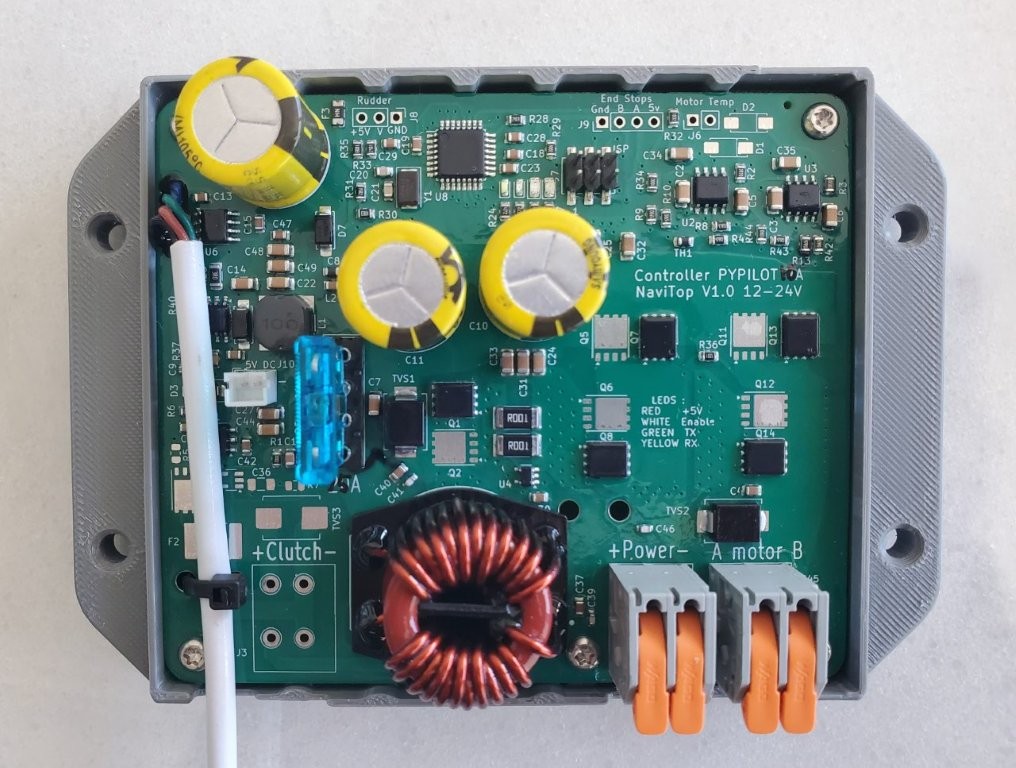

The PCB is marinized with tropicalizing acrylic varnish. It comes with flashed processor, tested functions, Wago 32A lever terminals (power input, and motor output), waterproof 4 pins connection to pypilot computer).

The 3-pin waterproof connection for the rudder sensor is not installed and can be supplied (CS3R).

The cable welds are covered with an electrical sealant

Case size : 104 x 70 x 25 mm

Electronic schematic

Manual (en)

Manuel (fr)

See below (produits liés) for products associated with this controller
