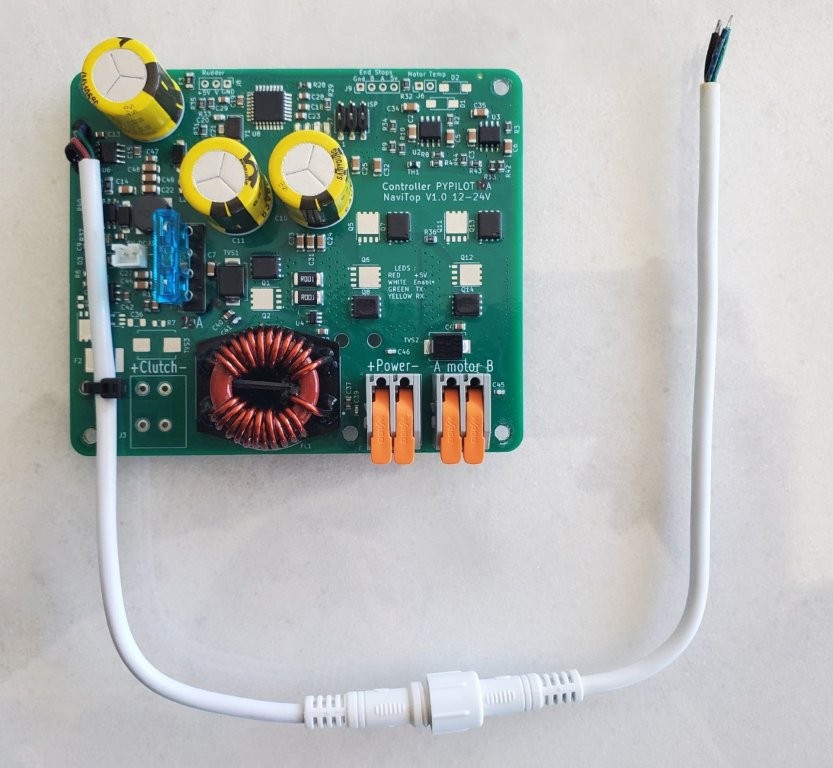

This motor controller without enclosure is sized to supply 10A continuously in 12 or 24V. It features EMC filters added to the Navitop 15A controller, using the same printed circuit board.

The clutch control components are not installed and the transistors are sized for 100 A instead of 200 A with the 12-24 V 15 A power supply. The 5V DC power supply for the Raspberry Pi Zero from the Pypilot computer can be safely provided via a JST connector on the printed circuit board.

The enclosure is not included

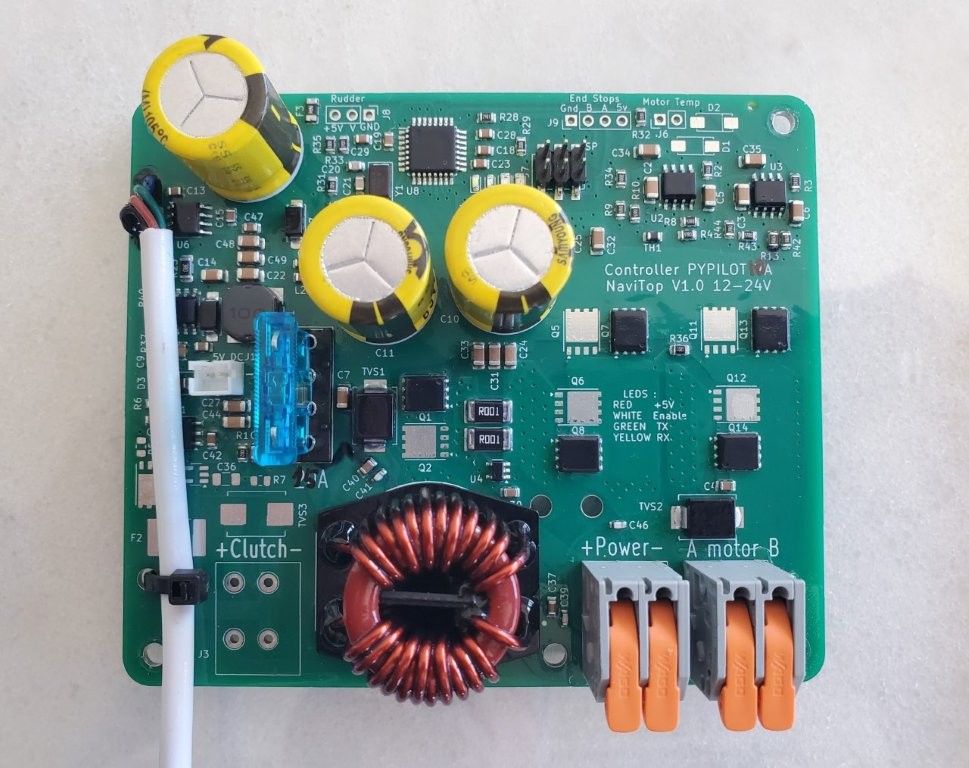

The printed circuit board is marinized with tropicalizing acrylic varnish. It comes with flashed processor, tested functions, Wago 32A lever terminals (power input, motor and clutch outputs) and waterproof 4 pins connection to pypilot computer.

The cable welds are covered with an electrical sealant

PCB size : 104 x 70 x 25 mm

Electronic Schematic

Case STL files

Manual (en)

Manuel (fr)

See below (produits liés) for products associated with this controller

Price without taxe and shipping
