This motor controller is sized to supply 15A continuously in 12V. This is the current to be considered at maximum torque allowing the rudder to move freely. The peak current of this controller can be 15A.

This controller hasn't clutch output

The enclosure is not included

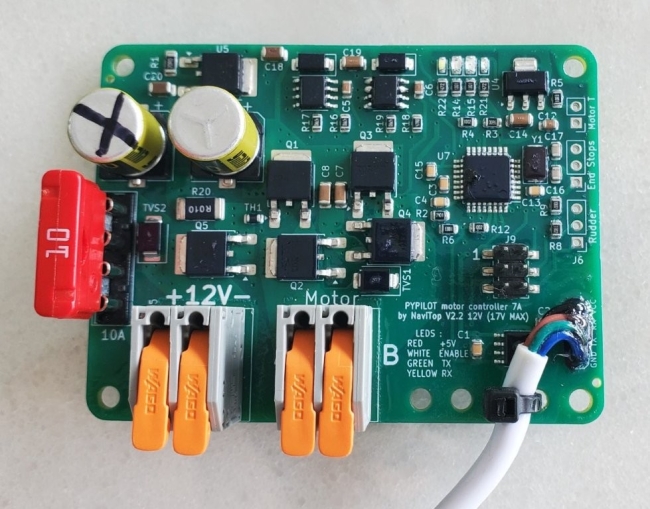

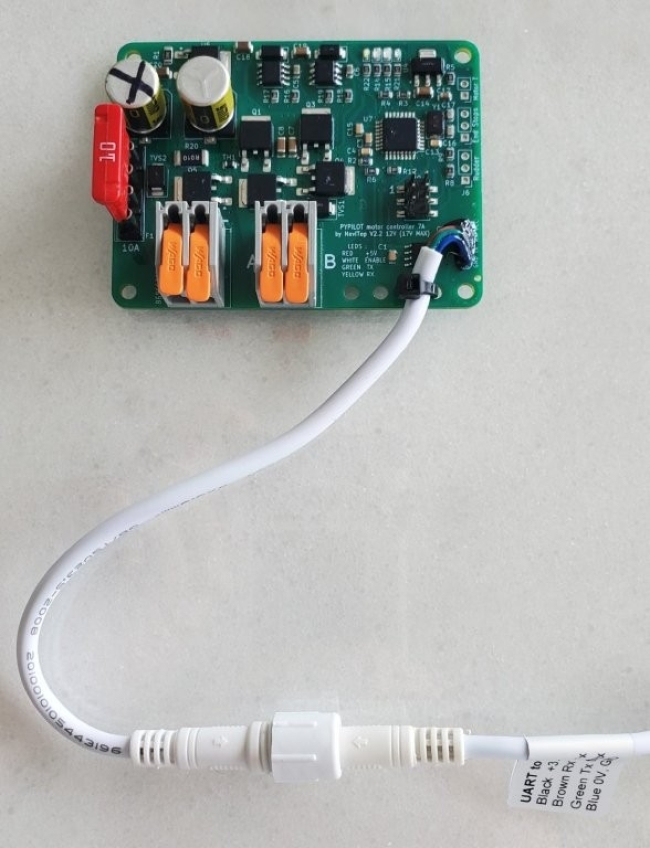

The PCB is marinized with tropicalizing acrylic varnish. It comes with flashed processor, tested functions, Wago 32A lever terminals (power input and motor output) and waterproof 4 pins connection to pypilot computer.

The cable welds are covered with an electrical sealant

PCB size : 76 x 57 x 25 mm

Electronic Schematic

Datasheet and manual (en)

See below (produits liés) for products associated with this controller

Price without taxe and shipping
