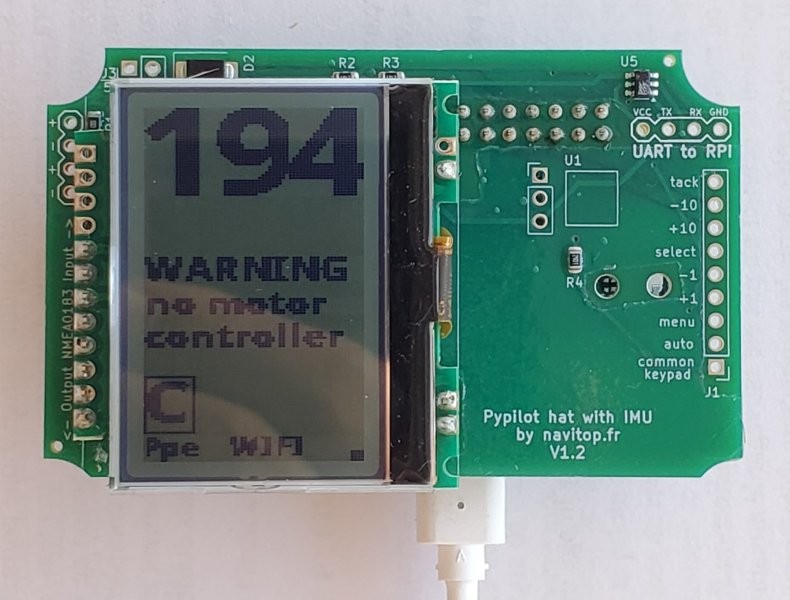

This Pypilot hat PCB, combined with a Pypilot motor controller and a Raspberry Pi Zero W with tinypilot-pypilot in its microSD card, results in a high-performance autopilot with very low power consumption. The PCB integrates the LCD display, a TDK ICM20948 (IMU), the UART interface to the motor controller, an NMEA0183 port with a galvanically isolated input, EMC surge protection and a GPIO socket to connect the Raspberry Pi.

An 8-button keypad can be connected to PCB.

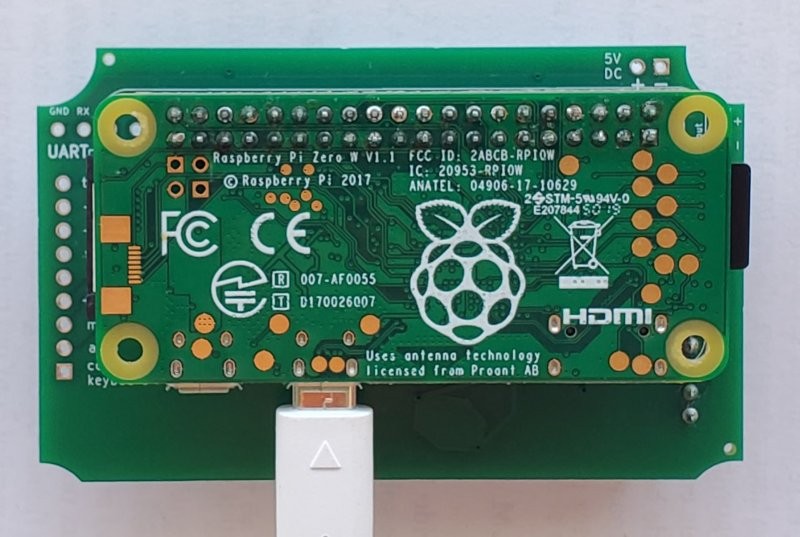

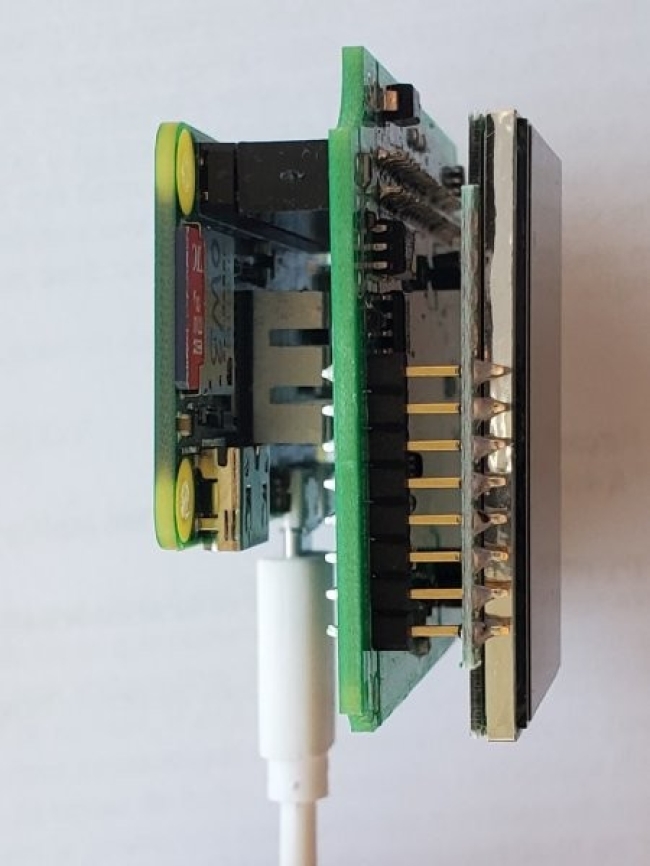

With a Pi higher than Zero, a GPIO spacer is needed to raise the HAT

The enclosure, the Raspberry Pi Zero, the cables and the microSD card are not included.

The motor controller is not included

Datasheet and manual (en)

Datasheet and manual (fr)

Electronic Schematics

See below (produits liés) for products associated with this hat
